C and Z channel is made of galvanized steel strips by the method of cold-bending
formed.The surface treatment are galvanized or bare. It has many advantages compared
with traditional structural steel, such as light weight, excellent
performance cross-section, high-strength and so on.

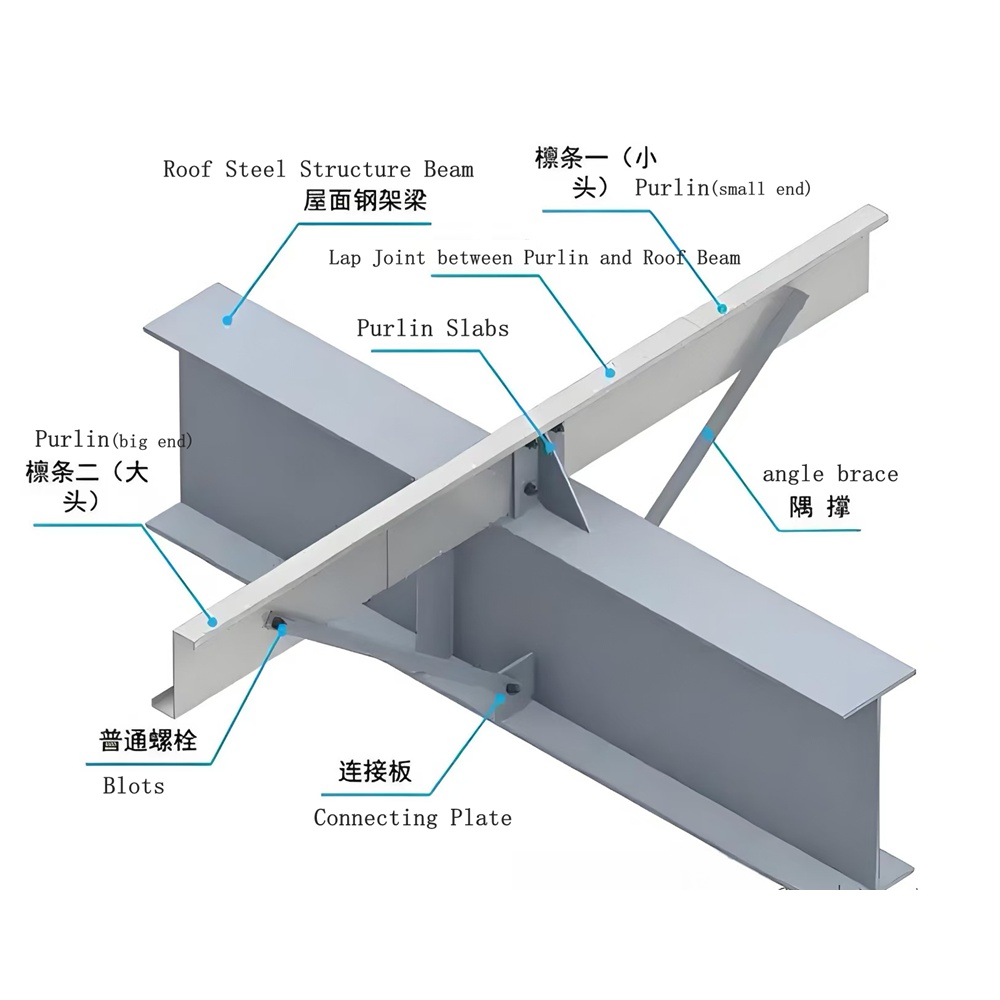

C/Z purlins are lightweight, cold-formed steel profiles crucial for modern steel structures. C-purlins (U-shaped with parallel flanges) offer high load-bearing capacity, ideal for roofs and walls requiring stiffness. Z-purlins (Z-shaped with angled flanges) provide excellent overlapability, reducing material waste in continuous spans. Both are corrosion-resistant, often galvanized, and cost-effective. They simplify installation, support cladding materials, and distribute loads efficiently, ensuring durability in industrial, commercial, and residential buildings. Choose C for stability or Z for flexibility—key components for robust, versatile steel frameworks.

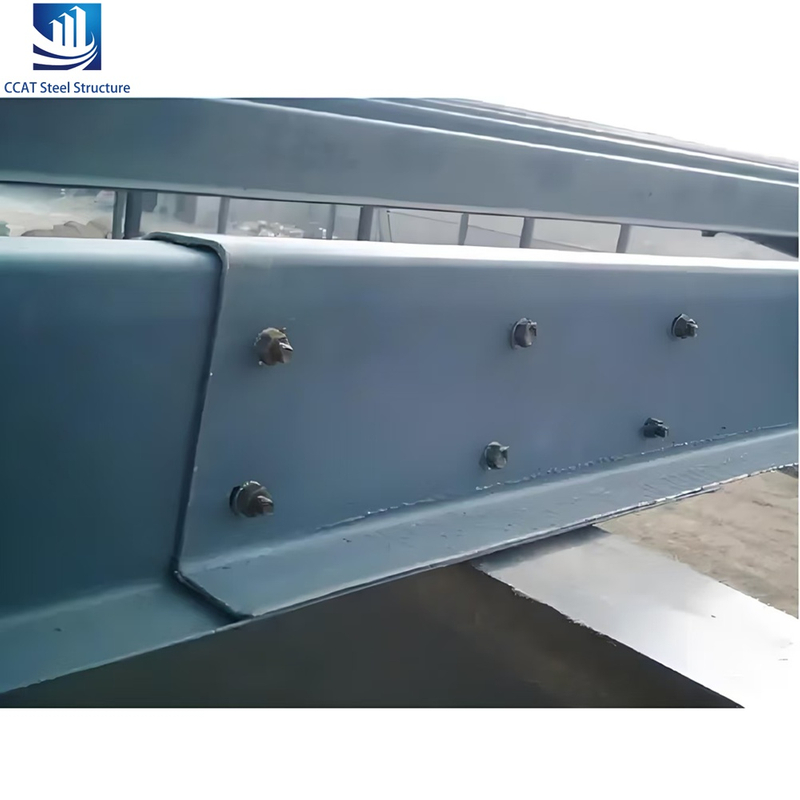

Z PURLINZ steel channel is made of galvanized steel strips by the method of cold-bending formed.The surface treatment are galvanized or bare. It has many advantages compared with traditional structural steel, such as light weight, excellent performance cross-section, high-strength and so on
Z steel purlin specification
Height: 100-300mm
Thickness: 1.5-3.0mm
Length: As customers' requirements.
Material: Q195/Q235/Q345/SS400
Surface: Painted or Galvanized.
Punch: Can be punched as customer's drawing
Product Description
Model NO. | Section size(mm) | Hole distance(mm) | Materials | ||||
H | B1 | B2 | C | Thickness | h | Q235/Q345 | |
Z100 | 100 | 55 | 50 | 20 | 1.3~3.0 | 40 | |
Z120 | 120 | 55 | 50 | 20 | 1.3~3.0 | Adjusted | |
Z140 | 140 | 55 | 50 | 20 | 1.3~3.0 | Adjusted | |
Z150 | 150 | 67 | 61 | 20 | 1.3~3.0 | Adjusted | |
Z160 | 160 | 67 | 61 | 20 | 1.3~3.0 | Adjusted | |
Z180 | 180 | 67 | 61 | 20 | 1.3~3.0 | Adjusted | |
Z200 | 200 | 67 | 61 | 20 | 1.3~3.0 | Adjusted | |
Z250 | 250 | 78 | 72 | 20 | 1.3~3.0 | Adjusted | |
Z280 | 280 | 78 | 72 | 20 | 1.3~3.0 | Adjusted | |
Z300 | 300 | 78 | 72 | 20 | 1.3~3.0 | Adjusted | |
Holes are made during production at continuous line,some additional notes are showing as follows:
· Holes can be made in a row or positions as per your design;
· Oval and rectangular holes can be rotated by 90°;
· Please contact us for additional information about the pre-punching possibilities,if you have any special hole punching requirement about hole size and hole shapes.
Production process:
1) Material preparation:Usually our steel material standards of Z purlin is Chinese standards Q195/235/345,we could also make as per your steel standards;
2)Hole pre-punched:If you have hole punching requirement,we could exactly punch the holes as per your requirements;
3)Cutting:Length could be any customized size,but it will be limited by container size,it's max 5.8meters for 20FT container and 11.8meters for 40FT container;
4)Quality inspection:We have QC people in workshop to do quality inspection,to ensure the product quality for customers.
