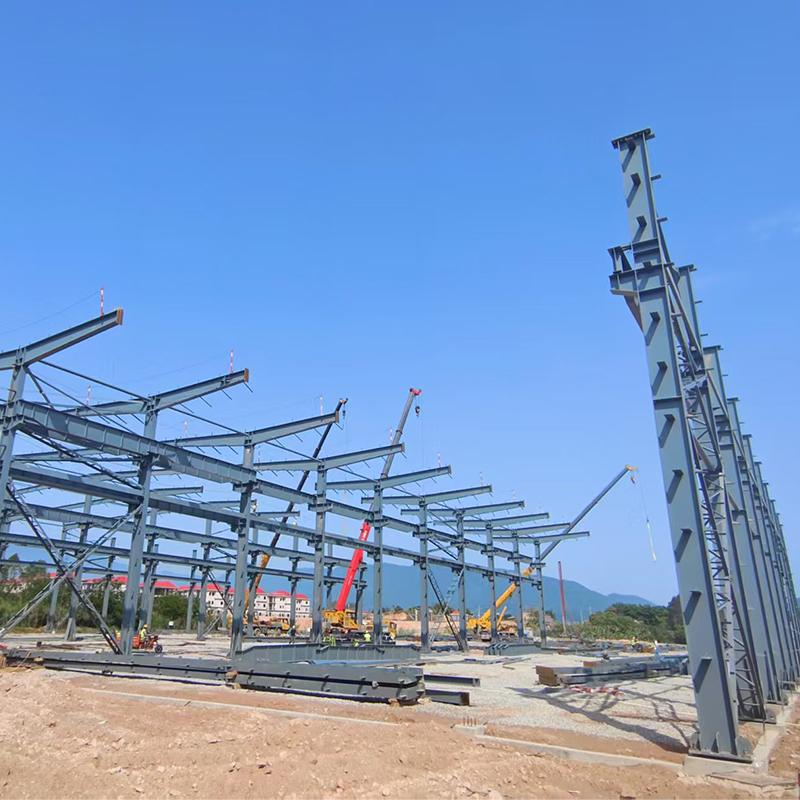

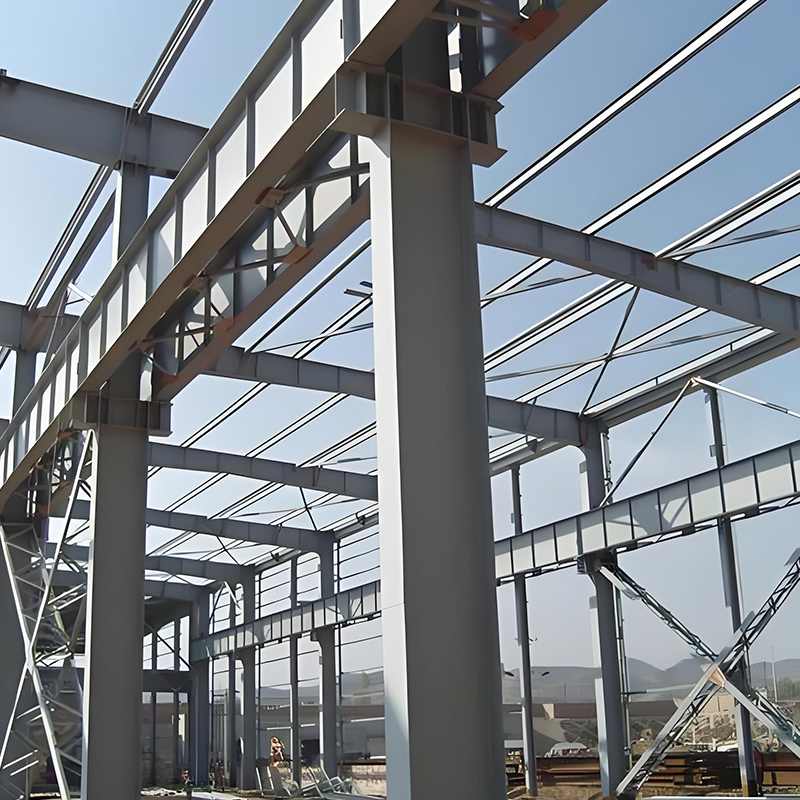

Steel structure building is formed by the main framework through linking up the H beam and column,C /Z purlin steel components. Roof and wall, which takes a variety of panels into use, combined with other components including windows and doors.
The advantages
--- long span/ high yeild and tensile strength/ light weight/low cost/energy saving
/brilliant appearance/ efficient construction time/ effective insulation/ long life span
/space-efficiency/ good seismic performance/ flexible layout, etc.
Products scope of using
Industrial steel structure warehouse / storage/Steel workshop / factory/light steel villa / prefab house/hangar/garage/chicken shed ect.
Products Parameter
Name | Steel Structure Warehouse/ Workshop Building | |
Dimensions | Length | According to customer requirements |
H Steel Thickness | web plate: 6-32mm | |
H Steel Height | 200-1500mm | |
Color | Painted,according to customer requirements | |
Warehouse Size | Width * length * eave height | |
Main Components | Base | Cement and steel foundation bolts |

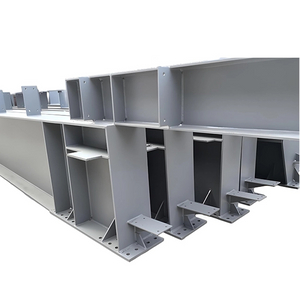

Main frame | H beam | |
Steel material | Structural steel Q235B, Q355B or others as buyers' requests. | |
Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
Bracing | X-type or other type bracing made from angle, round pipe | |
Bolt | Plain bolt and High-strength bolt | |
Roof & wall | Sandwich panel or color corrugated steel sheet | |
Door | Sliding door,roll-up shutter door or walk door | |
Window | Aluminium alloy window | |
Surface | Two lays of Anti-rust Painting | |
Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Glavanized gutter, etc | |
Advantages | 1. Lower cost with better quality. | |
2. High safety performance. | ||
3. Easy to assemble and dismantle. | ||
4. Installation with instruction of experienced engineers | ||
5. Non-pollution. | ||
Usages | 1. Workshop, Warehouse, Plant | |
2. Steel web frame structure | ||
3. Steel H-column and steel H-beam | ||
4. Portal frame products | ||
5. High rise building project | ||
6. Others steel structure buildings | ||
Packing | Main steel frame without packing load in 40'HQ | |
Roof and wall panel load in 40' HQ! | ||
Drawing | According to drawings or customers' requirements. | |
Design Parameters | Design for you, please supply us | |
1. length, width, height, eave height, roof pitch, etc | ||
2. wind load, snow load, raining condition, aseismatic requirements, etc | ||
3. Demands for doors and windows | ||
4. Other information if necessary | ||

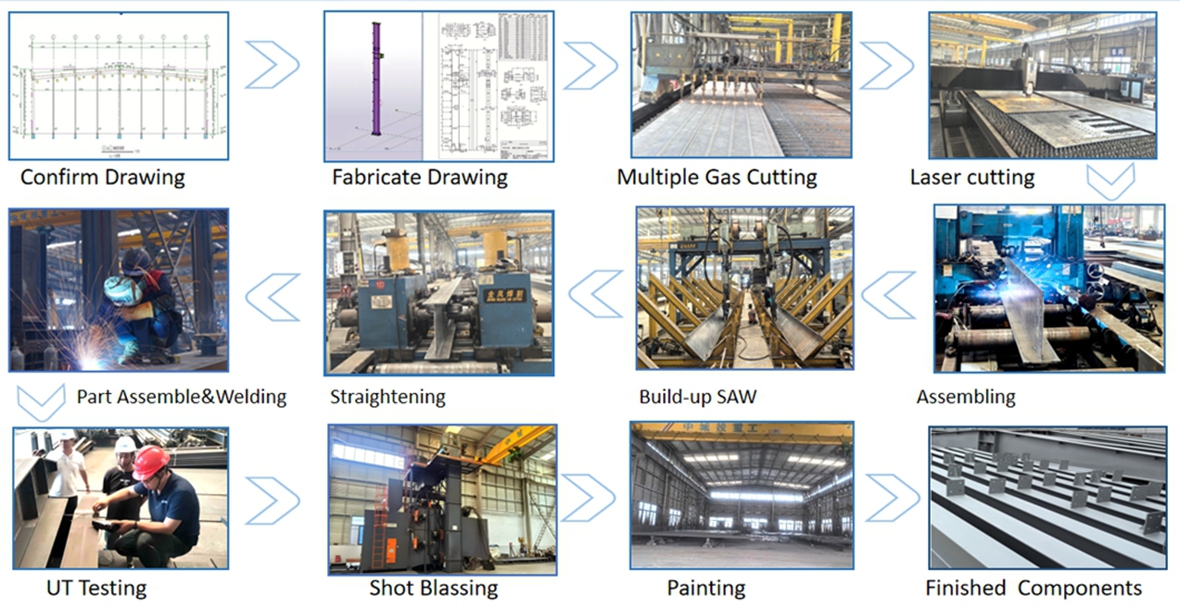

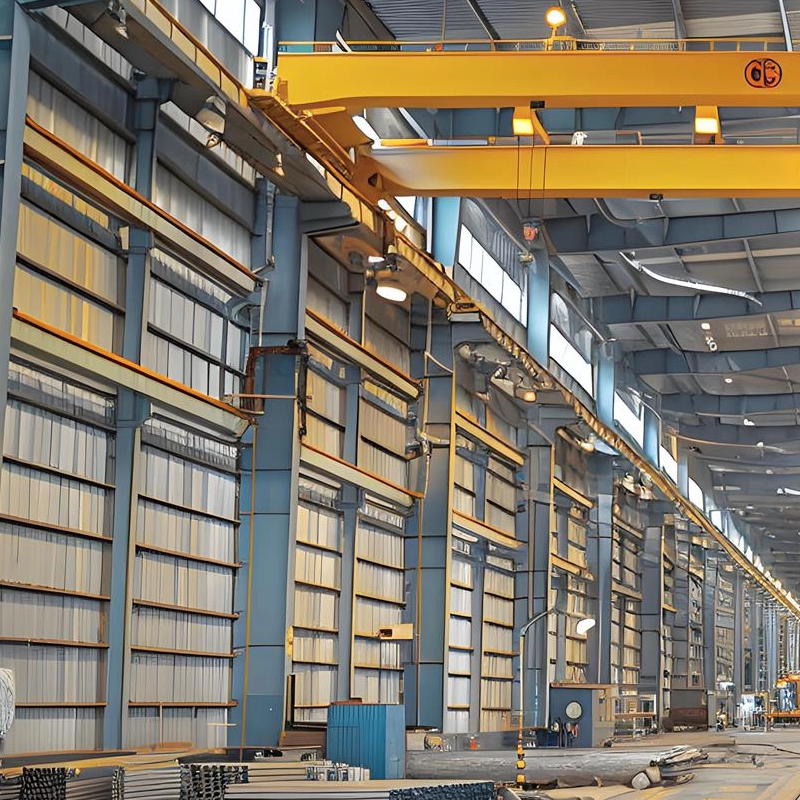

Production Process

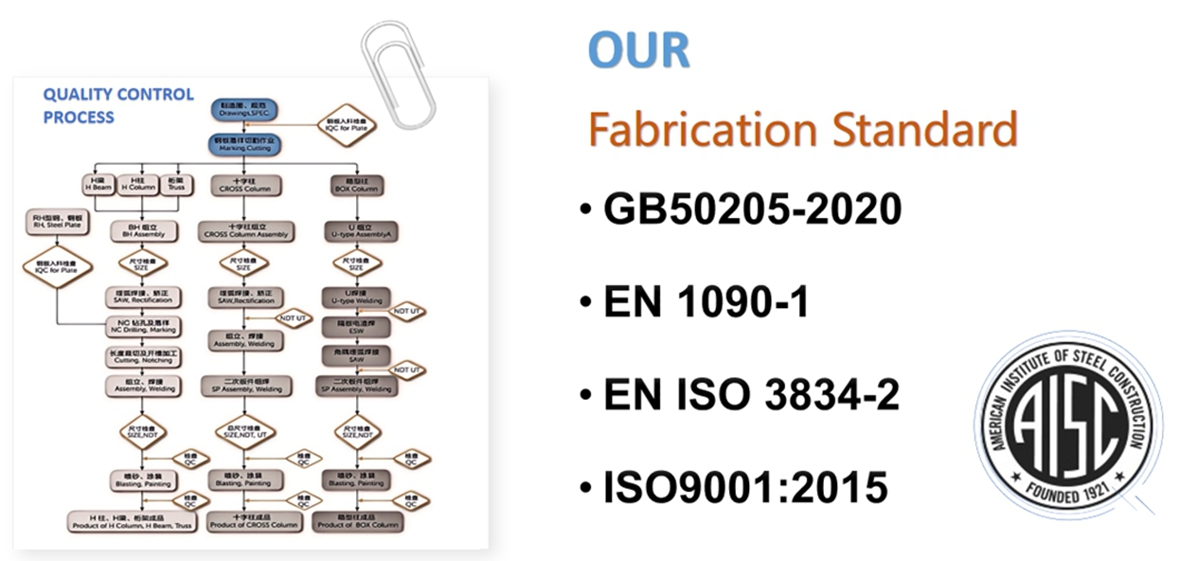

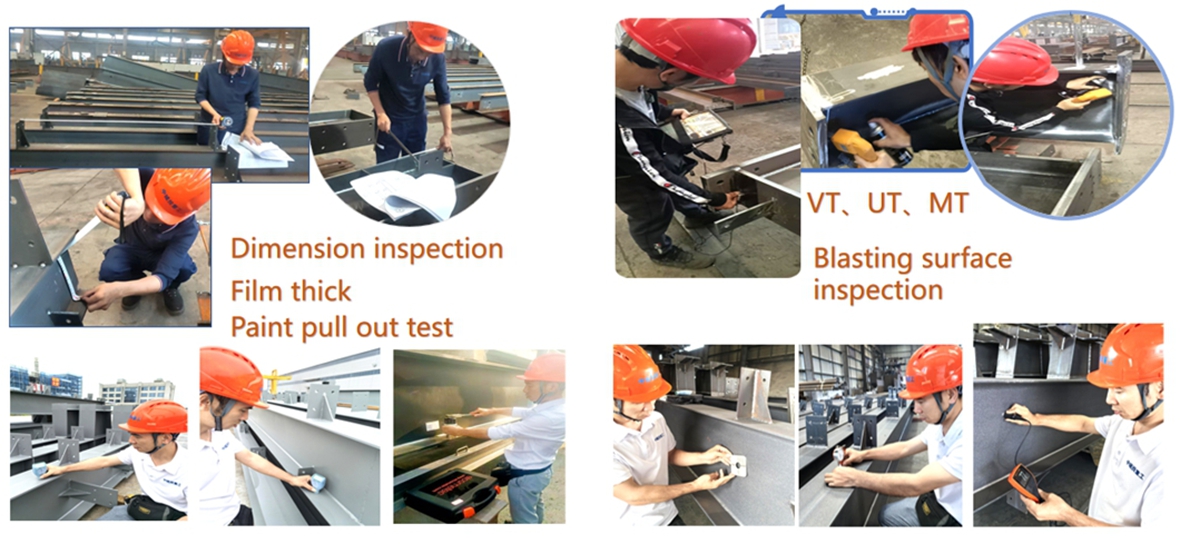

Quality Control
Certificate

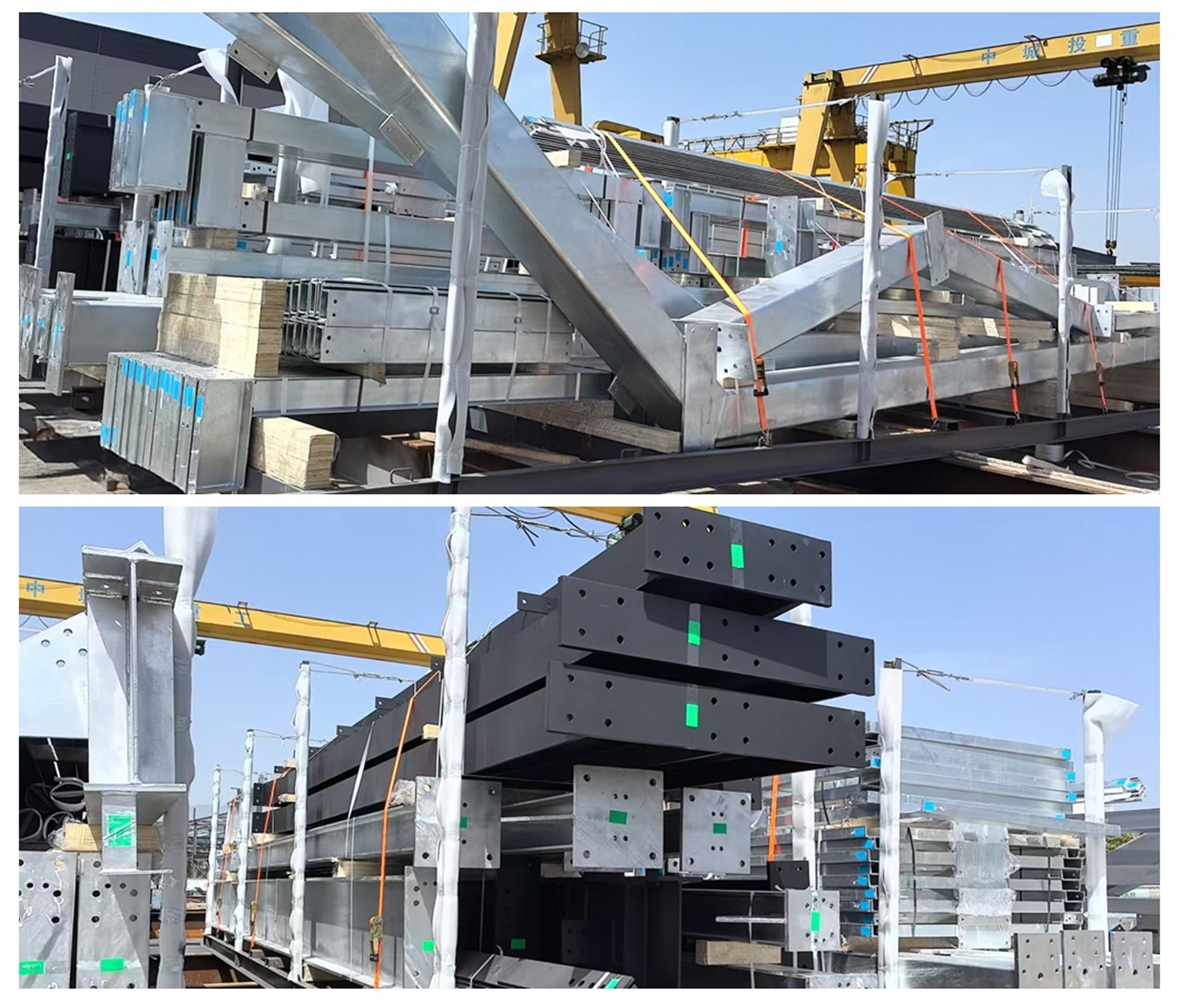

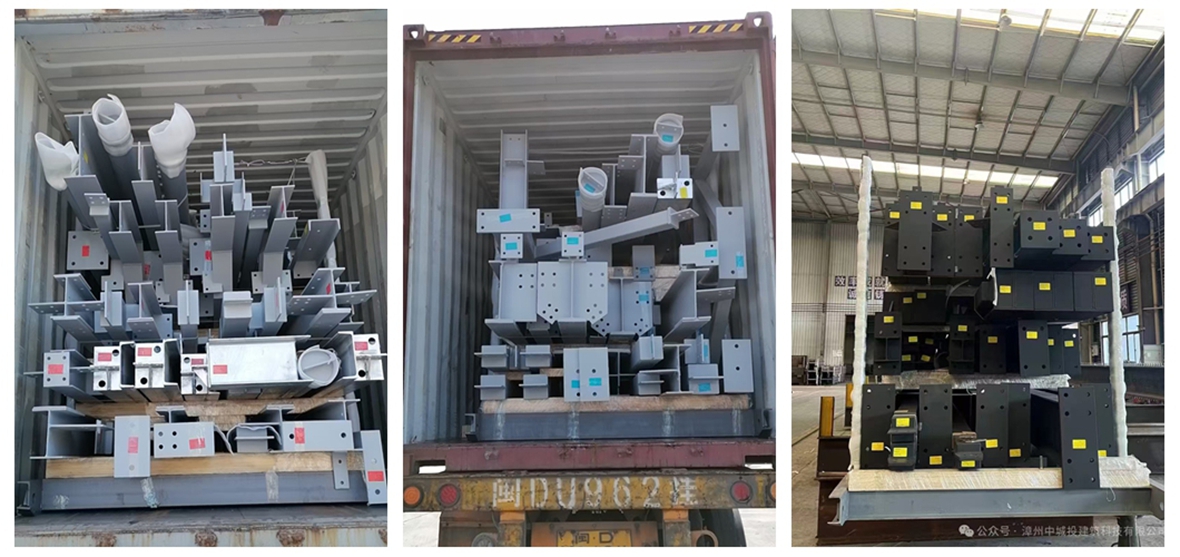

Packing &Loading

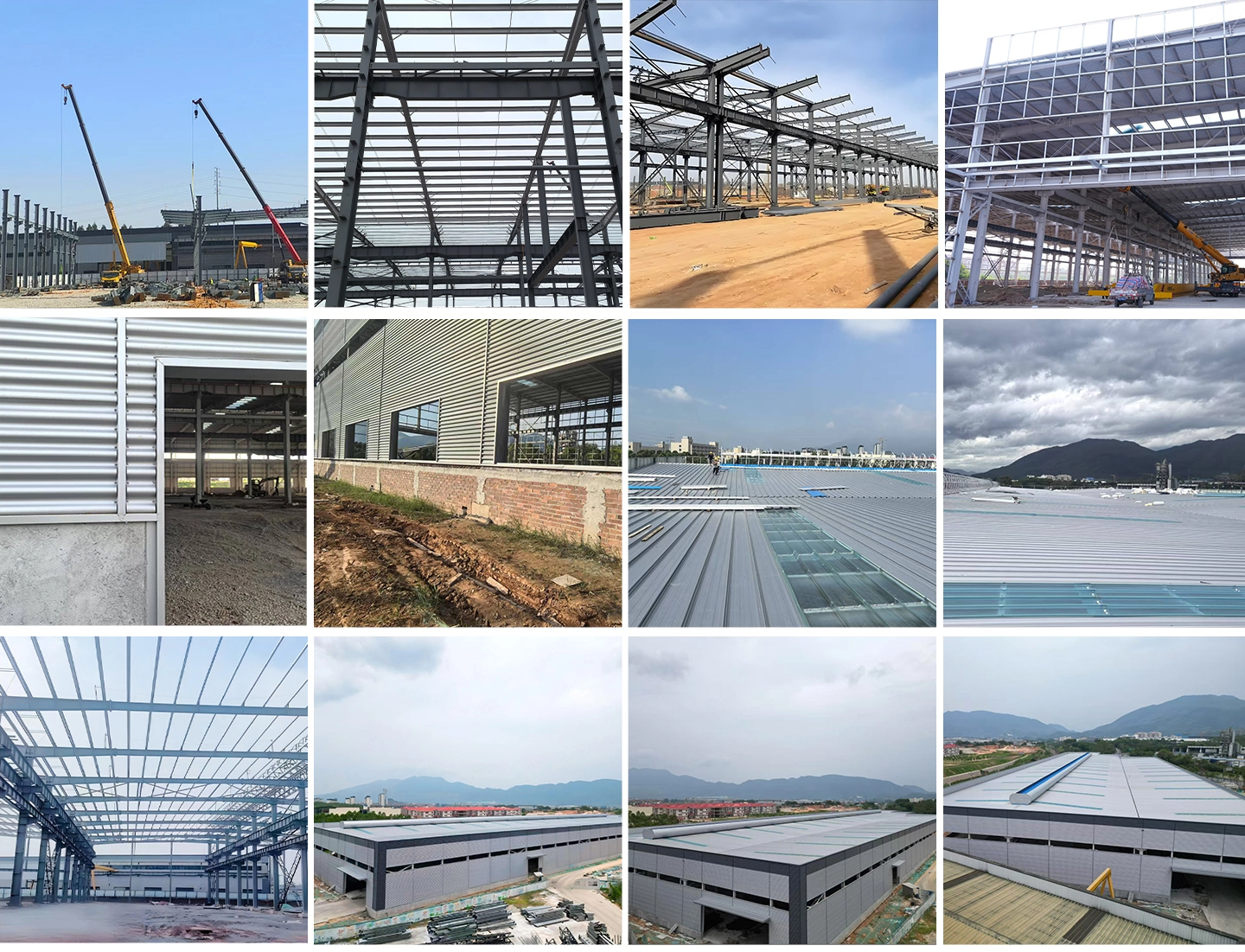

Application for warehouse
Why choose metal warehouse buildings?
1) Sturdy. Metal warehouses can be designed to meet your wind, snow, and earthquake load requirements, withstanding heavy winds and snow.
2) Easy and quick to install. All steel structures are pre-fabricated in our workshop, minimizing on-site welding—simplifying work for erectors and saving time. No need to worry about installation: we provide detailed drawings, and can send engineers overseas for guidance if needed.
3) Cost-effective. Fast installation reduces related costs.
4) Easy maintenance. Galvanized surfaces need no repainting; painted ones can be redone every 2–3 years. Roof and wall claddings are also easy to replace.
5) Aesthetic. Designs and cladding colors can be customized to your needs.

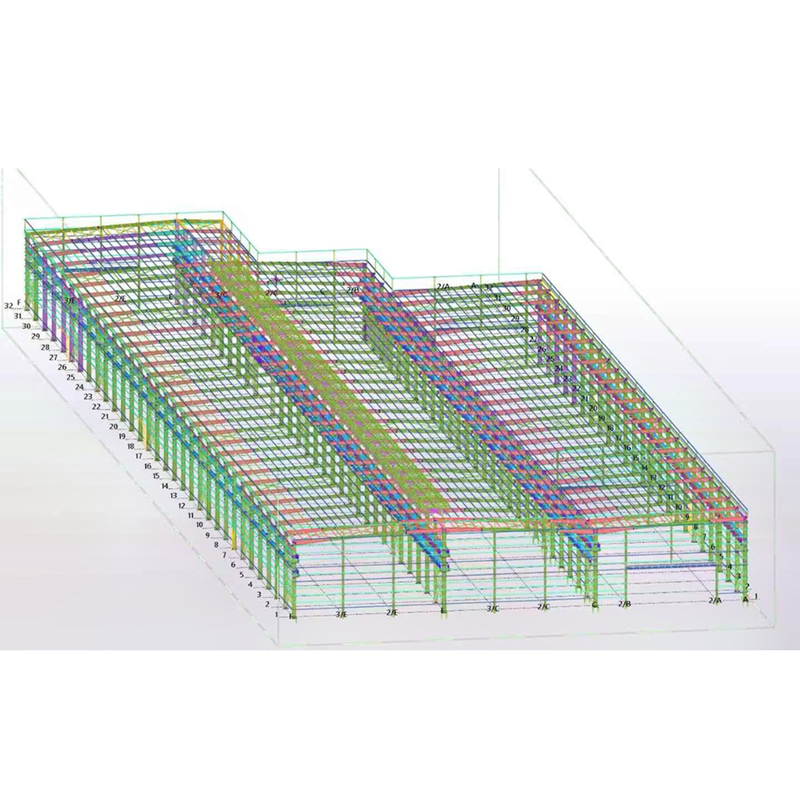

Each metal building undergoes rigorous computer calculations to withstand extreme weather like strong winds and blizzards. Provide accurate load info, and safety is guaranteed. Note that some low-cost suppliers may skip proper load design—beyond price, compare steel usage: beams are safety-critical, with higher loads requiring more steel. We pack steel structures carefully, wrapping protruding parts (e.g., purlins) in felt to protect paint. Exteriors are sealed with 0.3–0.6mm color steel tiles or sandwich panels, with various roof/wall colors. Regular shades (sea blue, white gray) are available; custom colors have minimum orders and slightly higher prices. We offer one-stop service: design, production，also can consultants to assist your contractors or full crews for on-site installation.
