This machine is the key equipment for assembling H-shaped heavy steel structure. It is equipped with several manipulators to realize the positioning and clamping of steel plates. This machine is also equipped with hydraulic system, pneumatic, frequency conversion and other devices, which can automatically, efficiently and accurately complete the assembly of "T" or "H" shaped steel. The operation is simple and highly automatic. It is mainly suitable for the assembly of constant parallel section and variable section H-shaped heavy steel.
The device has the following advantages:
1. The column guide track adopts a large cross-section rectangular double guide tracks, which has high guiding accuracy and good strength;
2. The column is tailor-welded with large cross-section square pipe, which has good strength and beautiful appearance;
3. The base is integrally welded and processed with extremely high strength;
4. The clamping on the main machine adopts hydraulic method combine mechanical method, which has high precision and convenient adjustment;
5. Except for standard section steel, section steel with offset webs can also be assembled.

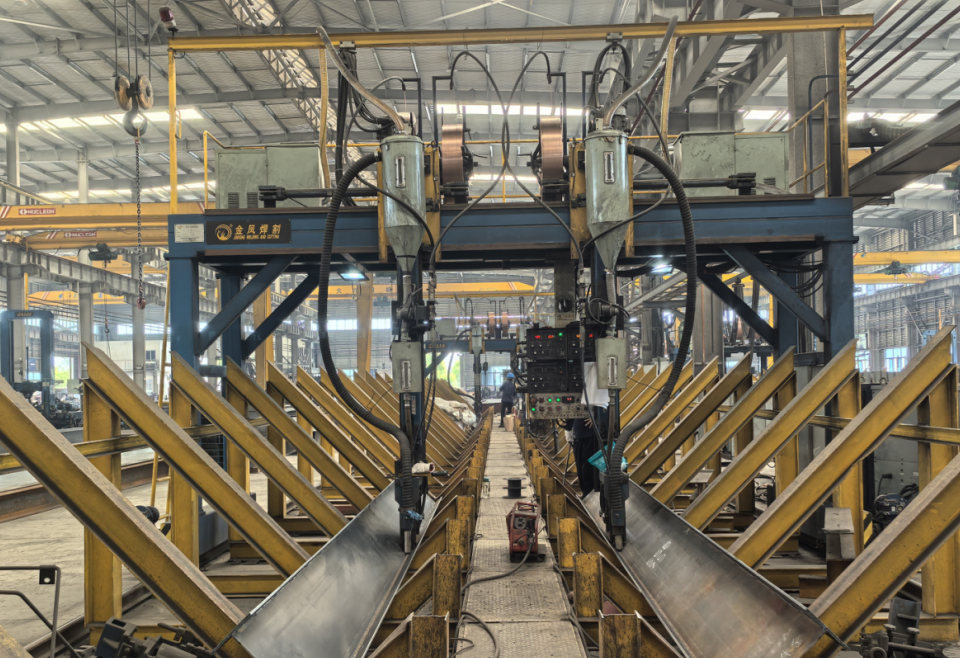

DMM60 Multifunctional Gantry Type Automatic SAW Machine
DMM60 submerged arc welding machine (single wire) is a dual-purpose welding equipment specially designed for welding "H" or "T" steel and welding box beams after replacing the weld tracking frame.
Advantage:
1. One machine with dual purposes, can weld H-shaped steel and box beams, easy to operate, and large range of welding seam tracking ; 2. Using heavy-duty seam tracking device, the welding seam is more uniform and smooth; 3. Efficient flux recovery system can recover and separate the flux more effectively, and can be reused; 4. Highly automatic, reliable work status, simple structure, easy for operation and maintenance; 5. The drag chain is placed in longitudinally, and the welding machine and the workpiece holder are directly connected with a large-section cable, which effectively improves the welding quality;

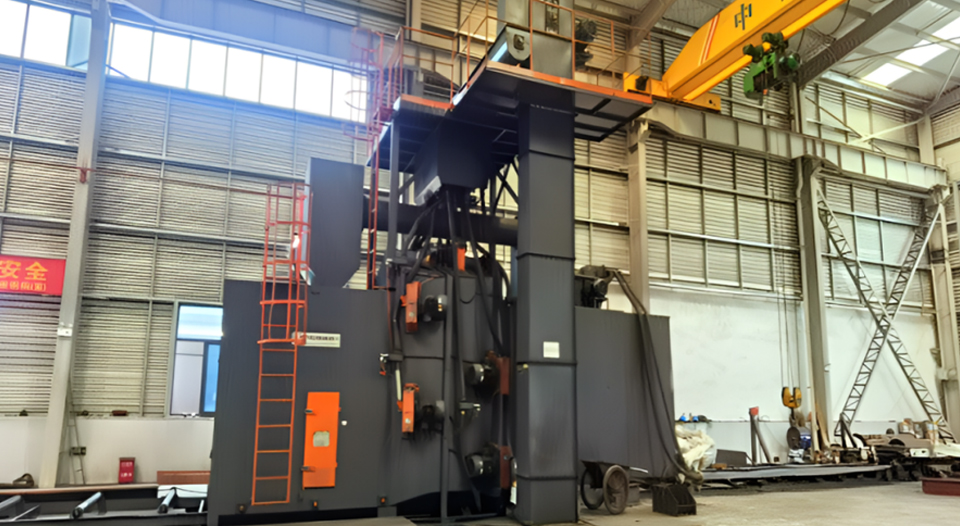

New Type Steel Structure Shot Blasting Machine
QA15-25 new type steel structure shot blasting machine is mainly used for shot blasting of steel structure parts. Using the high-speed rotating impeller of the shot blaster to accelerate the shot ball to the surface of the workpiece, impact and scrape the surface of the workpiece, not only can clean the sand, rust and dirt on the surface of the workpiece, but also eliminate the surface stress of the workpiece.
The surface is shot blasted to improve the fatigue strength of the workpiece, increase the adhesion of the paint film when the workpiece is painted, and finally achieve the purpose of improving the surface and internal quality of the whole workpiece.
We are engaged in producing steel structure products .
These are widely applied in projects such as steel structure, warehouse,industrial factory, shed, high-rise building.
