Construction Material Prefabricated Cheap Steel Structure Industrial Building Workshop Warehouse


Square meters:	Square meters
Availability:

Quantity:

Model:
Steel structure building
Brand:
CCAT

Steel Spine, Building the Future — Exceptional Steel Structure Product Solutions
In the modern construction landscape pursuing efficiency and sustainability, steel structures stand as the core force of architectural innovation with their unmatched strength, speed, and flexibility. We specialize in providing a comprehensive range of premium steel structure products, laying a solid foundation for your projects.
Core Advantages:
Rock-Solid Reliability: Utilizing high-strength steel ensures structural integrity and exceptional load-bearing capacity, delivering unparalleled safety and durability to buildings. Effortlessly handles large spans and heavy loads.
Efficient Construction: Precise factory prefabrication of components enables rapid modular on-site assembly, significantly reducing project timelines (by up to 40%) while lowering labor and time costs to accelerate project commissioning.
Design Freedom: Steel's properties support complex forms and flexible spatial layouts, effortlessly realizing architects' imaginative visions to create iconic industrial plants, modern exhibition halls, sports stadiums, and large-scale public facilities.
Green and Eco-Friendly: Steel is 100% recyclable. Construction involves minimal pollution and noise, significantly reducing construction waste. It is the preferred green building solution aligned with national “dual carbon” goals.
Economical and Reliable: Low total lifecycle cost, easy maintenance, and excellent seismic and wind resistance provide long-term investment security.
Versatile Applications:
Whether for large industrial plants, logistics warehouses, commercial complexes, multi-story buildings, or specialized structures like bridges, power stations, and stadiums, our steel products—including H-beams, box columns, trusses, purlins, wall beams, and integrated enclosure systems—deliver tailored solutions.
Choosing us means choosing:
Cutting-edge materials and processes
Rigorous quality control
Professional design and technical support
High-efficiency project delivery capabilities
Let us join hands with the will and wisdom of steel to build safer, more efficient, greener, and more economical future spaces! Contact us now to get your exclusive steel structure solution!

Translated with DeepL.com (free version)

Structural Steel Steel Beams Steel Columns Steel Fabrication Prefab Steel Buildings Steel Rebar Steel Plate Galvanized Steel Steel Construction Commercial Steel Buildings

Product Description

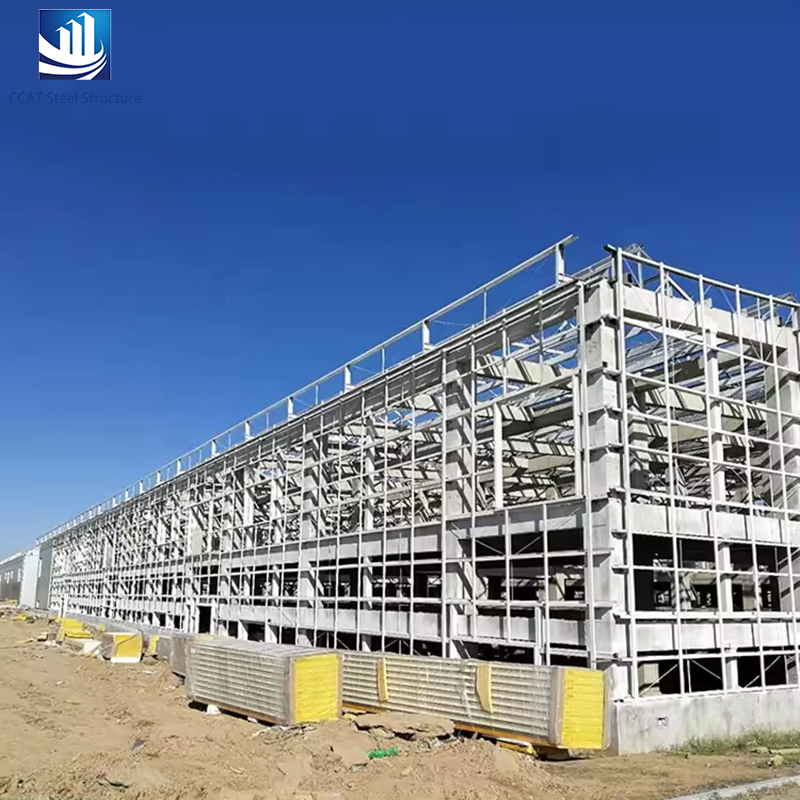

Steel Structure Building Description

Main steel frame	H section steel beam and columns, galvanized
Secondary frame	Hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc.
Roof panel	EPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and PU sandwich panel or other materials
Wall panel	Sandwich panel ,corrugated steel sheet or other materials
Tie Rod	Circular Steel Tube
Brace	Round Bar
Knee Brace	Angle Steel
Roof Gutter	Color Steel Sheet
Drawing	We can make the design and quotation according to your require or your drawing
Certification	I-S-O,C-E.

Products Description

steel structure building

Steel Materials List

Product display

Process Introduction

C and Z channel is made of galvanized steel strips by the method of cold-bending

formed.The surface treatment are galvanized or bare. It has many advantages compared

with traditional structural steel, such as light weight, excellent

performance cross-section, high-strength and so on.

C/Z purlins are lightweight, cold-formed steel profiles crucial for modern steel structures. C-purlins (U-shaped with parallel flanges) offer high load-bearing capacity, ideal for roofs and walls requiring stiffness. Z-purlins (Z-shaped with angled flanges) provide excellent overlapability, reducing material waste in continuous spans. Both are corrosion-resistant, often galvanized, and cost-effective. They simplify installation, support cladding materials, and distribute loads efficiently, ensuring durability in industrial, commercial, and residential buildings. Choose C for stability or Z for flexibility—key components for robust, versatile steel frameworks.

Purlin 88

Z PURLINZ steel channel is made of galvanized steel strips by the method of cold-bending formed.The surface treatment are galvanized or bare. It has many advantages compared with traditional structural steel, such as light weight, excellent performance cross-section, high-strength and so on

Z steel purlin specification

Height: 100-300mm

Thickness: 1.5-3.0mm

Length: As customers' requirements.

Material: Q195/Q235/Q345/SS400

Surface: Painted or Galvanized.

Punch: Can be punched as customer's drawing

Model NO.	Section size(mm)					Hole distance(mm)	Materials
Model NO.	H	B1	B2	C	Thickness	h	Q235/Q345
Z100	100	55	50	20	1.3~3.0	40
Z120	120	55	50	20	1.3~3.0	Adjusted
Z140	140	55	50	20	1.3~3.0	Adjusted
Z150	150	67	61	20	1.3~3.0	Adjusted
Z160	160	67	61	20	1.3~3.0	Adjusted
Z180	180	67	61	20	1.3~3.0	Adjusted
Z200	200	67	61	20	1.3~3.0	Adjusted
Z250	250	78	72	20	1.3~3.0	Adjusted
Z280	280	78	72	20	1.3~3.0	Adjusted
Z300	300	78	72	20	1.3~3.0	Adjusted

Holes are made during production at continuous line,some additional notes are showing as follows:

· Holes can be made in a row or positions as per your design;

· Oval and rectangular holes can be rotated by 90°;

· Please contact us for additional information about the pre-punching possibilities,if you have any special hole punching requirement about hole size and hole shapes.

1) Material preparation:Usually our steel material standards of Z purlin is Chinese standards Q195/235/345,we could also make as per your steel standards;

2)Hole pre-punched:If you have hole punching requirement,we could exactly punch the holes as per your requirements;
3)Cutting:Length could be any customized size,but it will be limited by container size,it's max 5.8meters for 20FT container and 11.8meters for 40FT container;
4)Quality inspection:We have QC people in workshop to do quality inspection,to ensure the product quality for customers.

Packing & Loading

Purlin

Company Introduction

Zhangzhou Zhongchengtou ( abbreviated as “CCAT")Construction Technology Co., Ltd. was founded in June, 2018Factory covers area of over 76000 m' with production capacityof around 36000 Ton /year. it has own office in Xiamen City,China. We are engaged in producing steel structure products .These are widely applied in projects such as factories ,shed,warehouse, steel structure , high-rise buildings.

工厂大门 (2)

Relevant certifications

FAQ

Q1: What are the benefits of steel construction?
A:1-Durable and with long lifespan.

 2-Short construction period than concrete and wooden building.
 3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q2: What is your terms of payment?
A: L/C and T/T

Q3: What's the quality assurance you provided and how do you control quality?
A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. We accept customers to inspect the goods at the factory and provide steel structure inspection reports for each batch of goods

Q4: How to pack the products?
A: 1- Steel structure components will be in packaging with proper protection.
2- Sandwich panels will be covered with plastic film.
3- Bolts and other accessories will be loaded into wooden Boxes
4- All the structure components, panels, bolts and sorts of accessories will be well packed with standard package suitable for ocean transport and loaded into 40’HQ.
 5- All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will
prevent the goods to be damaged.

Q5: Do you offer guiding installation on site overseas for the buildings?
A: Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical
engineer to supervise installation on site overseas. They have succeeded in many countries such as USA, Dubai, South
Africa,Algeria, and Ghana.
